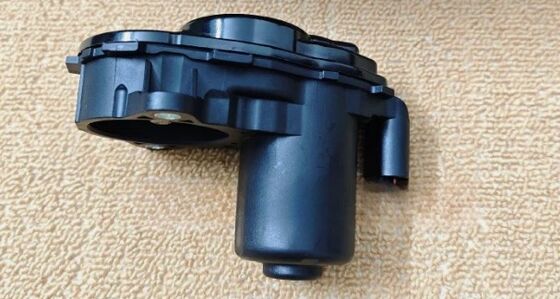

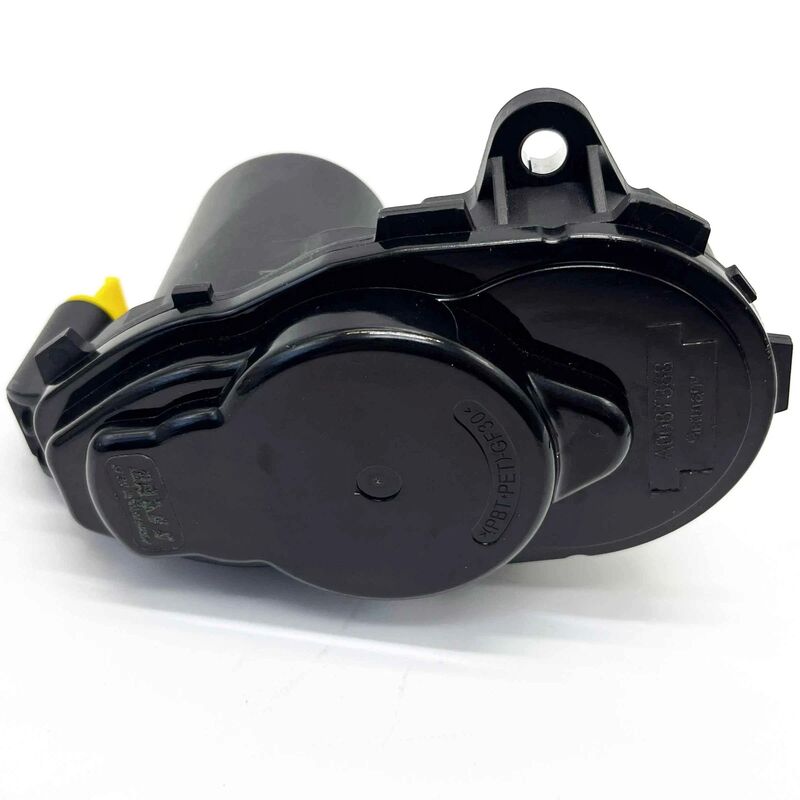

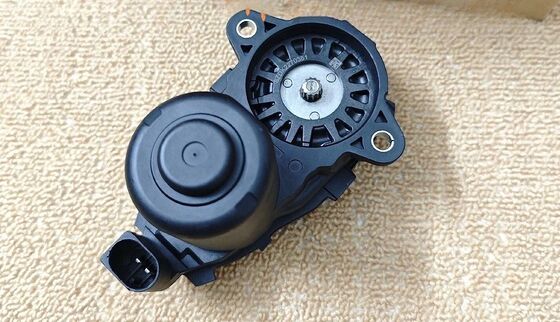

Electronic Parking Brake Actuator Fit for Mercedes Benz W167 GLE #A1679062004

EPB (Electrical Park Brake) replaces traditional lever brakes with a convenient push-button system. The system automatically releases the brake when the vehicle starts and engages automatically when parking, preventing rollaway risks and enhancing safety.

This product is a key TRW project of German Tianhe Company, belonging to the parking system within the vehicle safety system. It has been included in the host plant safety system standard since 2016, when most domestic host plants established electronic parking system departments. Today, all domestic private cars are equipped with this product, with stock continuing to double.

Beyond providing parking brake functions, this product is an integral part of the brake system and can be used for emergency brake control. When combined with the electronic stability control system, the EPB system enables four-wheel Anti-lock Braking System (ABS) stop functionality when needed.

• Operating voltage range: 9V-16V
• Parking action time: ≤1.5 s@12V 25°C
• Operating temperature range: -20°C to 85°C
• Product tightness requirements: Vacuum ≤ -95 KPA after voltage stabilization
• Leak value < 1 KPA at 12V, current < 2.0A
• Load torque at current 15A: 15 NM
